Vibramax 100 (CH) Platform Shaker

544-21200-00

Piece

Type of motion circular vibrating
speed range 150 - 1.350 rpm
Operating mode timer function / continuous operation
orbit / stroke 3 mm
Timer yes (max. 120 min)
Input power 31
Usable area 220 x 220 mm
Max. Load 2 kg
Overheating protection self-resetting
Protection class (EN 60529) IP 30

The compact model

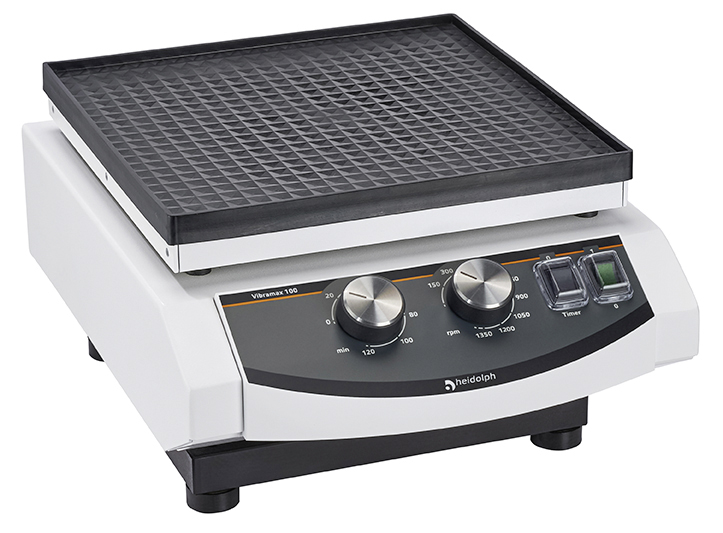

Vibramax 100 is a compact and space saving unit with a load capacity of 2 kg
The 3-mm vibration orbit gives excellent results especially in large vessels - allows for smooth to ridged mixing of viscous media and solids
Set and continuously adjust the variable speed on the analog control knob from 150 to 1,350 rpm

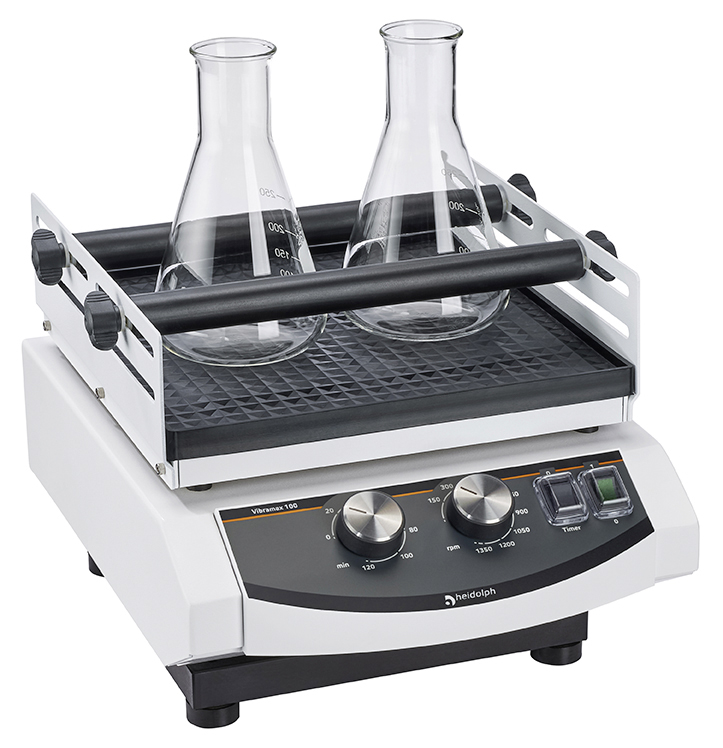

Optional attachment with tension rollers accepts any glassware size

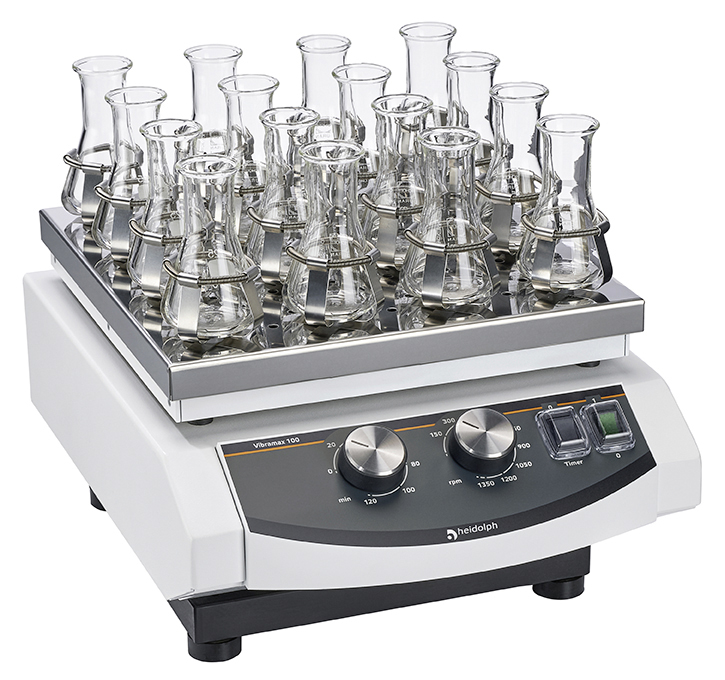

A large selection of attachments is provided for the use of various vessels and sizes
Your analog process timer allows for unattended operation and can be set from 1 to 120 minutes. When the set time has elapsed an acoustic alarm will sound and the operation stops
