Hybride emergency power supply 5'000W with WIFI

SOLH-T-S5000

Piece

Model: SOLH-T-S5000W
Battery voltage: 48V

Inverter
Power: 5000W
Input voltage range: 170V/275V
Input frequency: 45-65Hz
Output voltage:110V/220V
Output frequency: 50/60Hz
Output signal: pure sine wave
Specification > 1 piece lithium battery: à 4500WH
Internal communication: WIFI (optional)

MPPT solar input
Max. PV power: 1'500W
Range of charging voltage: 60-150VDC
Rated charging current: 30A (MPPT).
MPPT efficiency: ≥99%.
Floating charge voltage: 49.8VDC
Low voltage restoration voltage: 46.8VDC
Low voltage protection voltage: 37.2VDC

DC output
Mobile output: TYPE C-PD60 / USB QC3.0 / USB-5VDC 2.4A/2 units.
12VDC output ports: 2 sockets of 2A max each.

Physical
Heat dissipation/cooling: temperature control by intelligent exhaust fan.
Display: touch screen or via app (wifi).

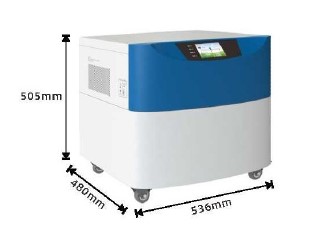

Outer size：W*D*H（mm): 536*480*505mm

Features:
● Excellent performance thanks to the intelligent dual CPU control technology;
● 6000 cycles lithium battery and has a service life of 5 years;
● Mains operation / UPS operation / battery operation can be flexibly set;
● Convenient and practical 5VDC USB output port and 12VDC output port;
● MPPT controller improves charging efficiency by more than 20%;
● Over-charge protection and over-discharge protection for longer battery life;
● Safe and reliable with intelligent exhaust valve gate control;
● Conveniently access system data via touch screen and APP (Wifi);
● Automatic monitoring with alarms, AC - overload protection, DC - short circuit protection;
